Home > PRODUCTS > Sinotruk Marine diesel Engine Fiberglass

Sinotruk Marine diesel Engine Fiberglass Boat Engine Sinotruk Marine diesel Engine 140-330kW(190-450HP)

Sinotruk Marine diesel Engine Fiberglass Boat Engine Sinotruk Marine diesel Engine 140-330kW(190-450HP)

Category： PRODUCTS
Views：43
Product description：
Order online

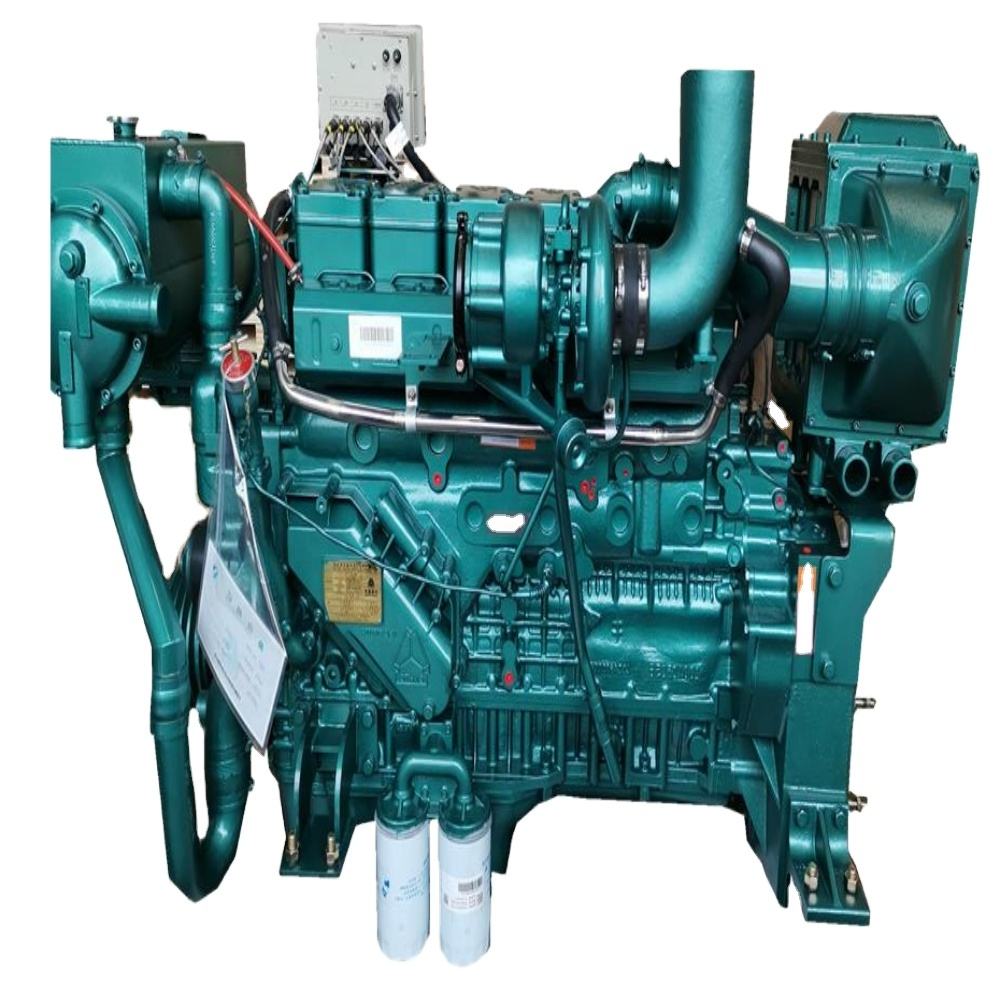

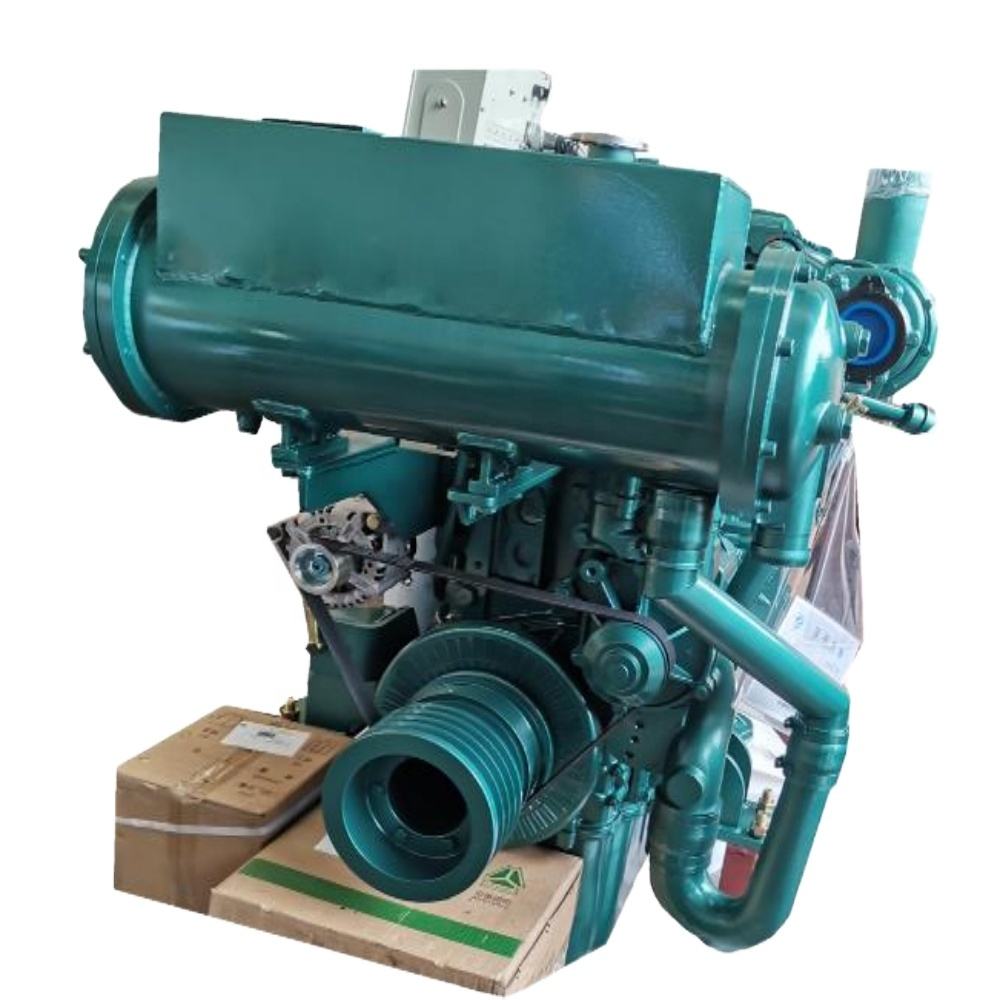

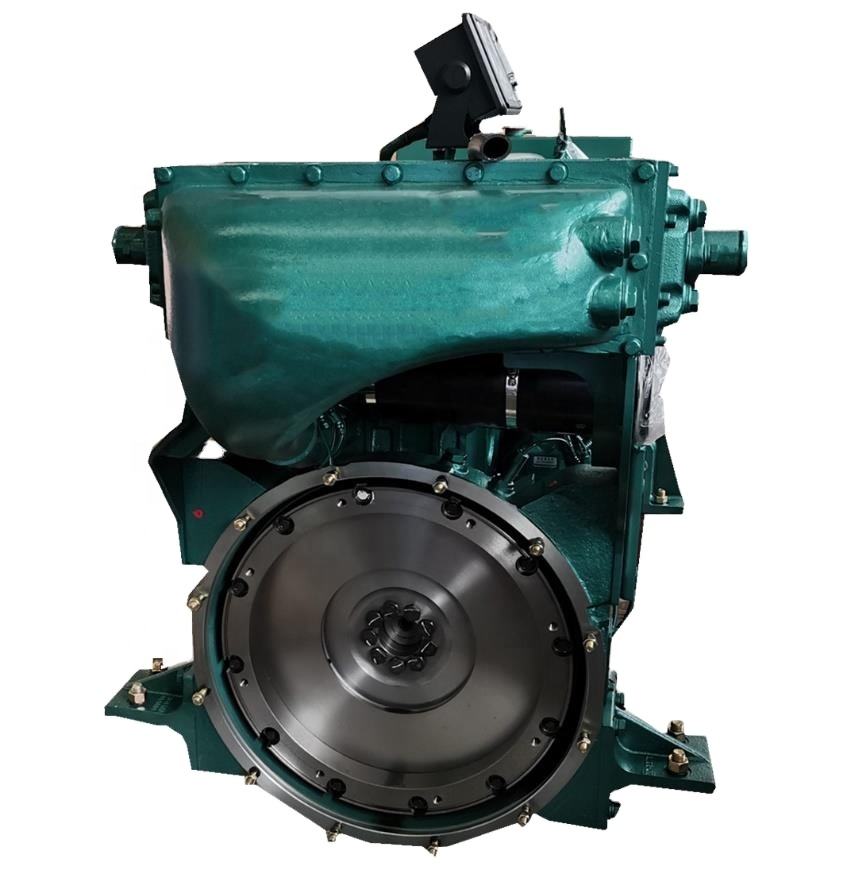

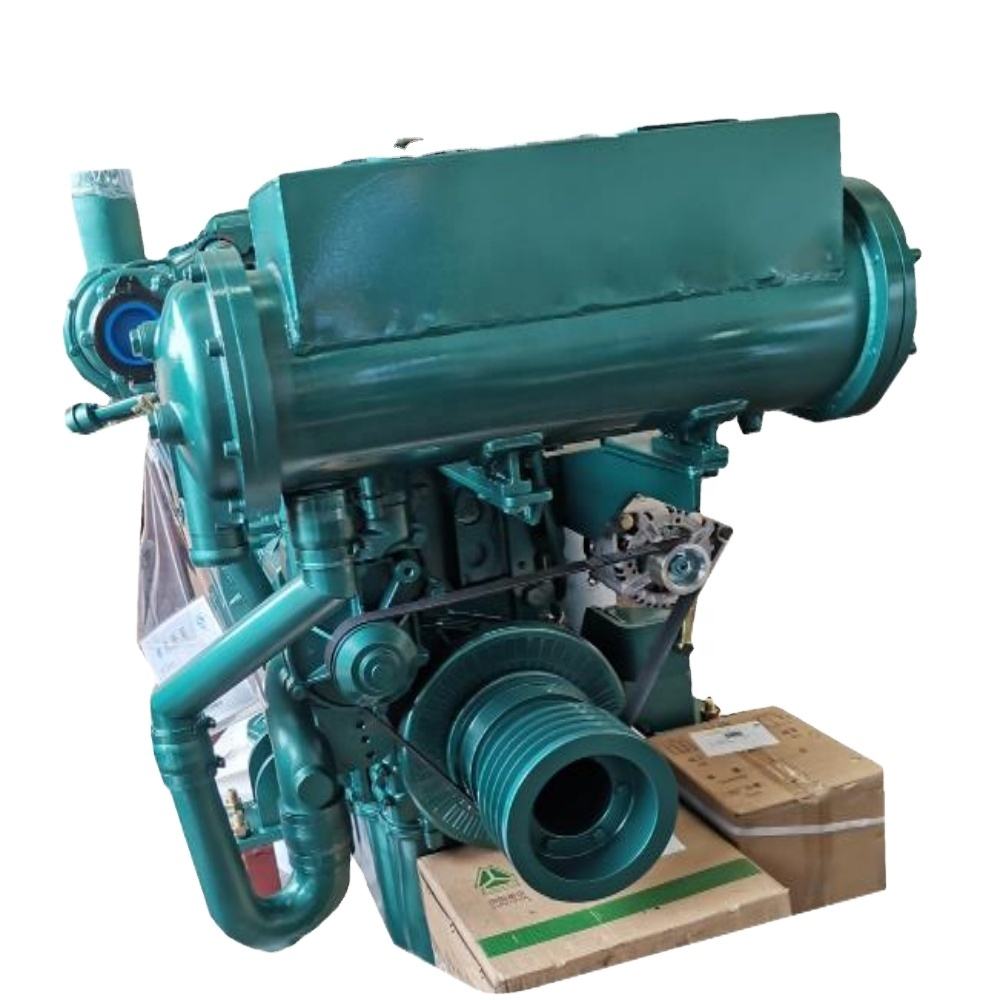

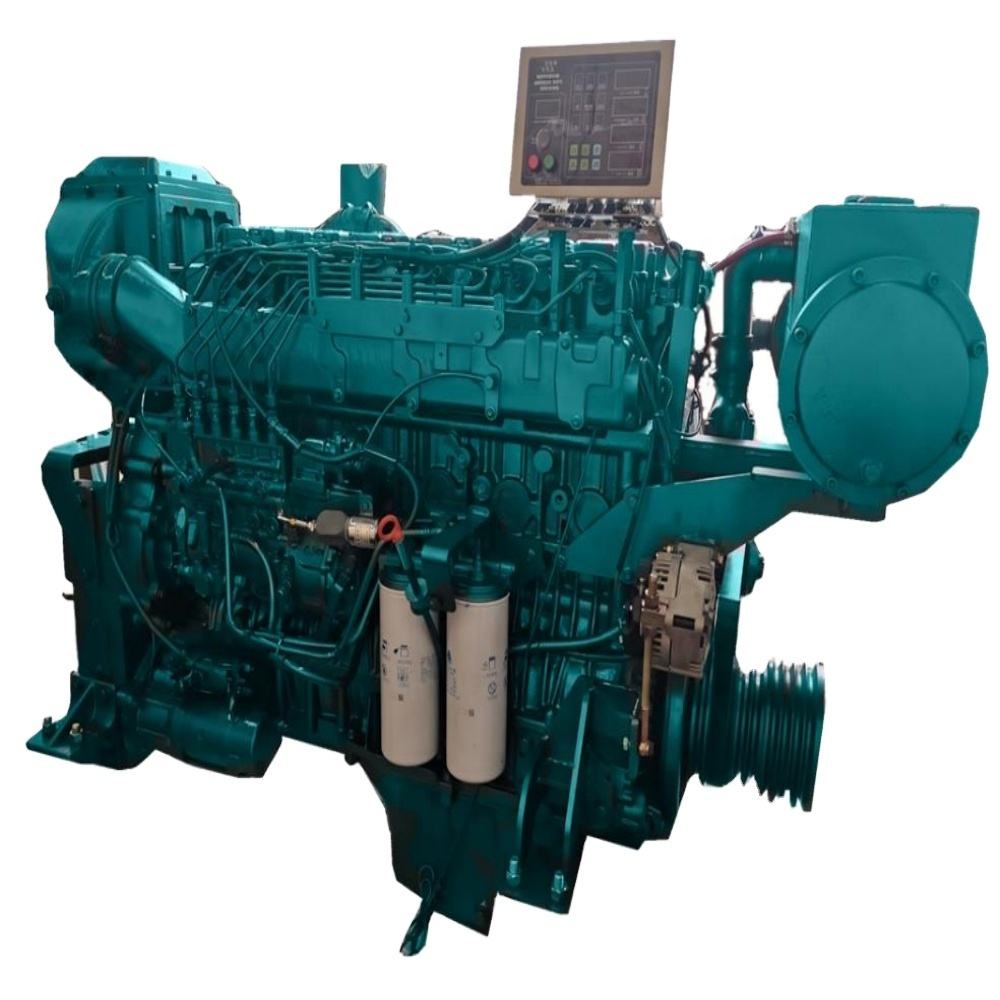

Sinotruk D1242 Marine Diesel Engine

Sinotruk marine engine with power 50-500HP, speed 1500-2300rpm, Sinotruk is China second top brand engine for the high speed engine, which is totally adopted by Austria Steyr tech. engine assembly quality warranty for 3 years, and the Cylinder bock is Ricardo brand EURO III. U.K Delphi brand injector, comparably low volume, light weight.

Superior performance, economical and practical: equipped with special fuel injection pump, main engine with parking
electromagnet, auxiliary engine with electronic governor, in a wide power range and speed range is extremely low fuel
consumption, minimum fuel consumption rate is lower than the 198g/KW.h.
Patent balance mechanism: completely solve the two - level reciprocating inertia force of the four cylinder engine, the whole balance mechanism is placed in the oil pan, and does not affect the overall size of the engine and the original structure of the engine, so that it is easy to arrange in the cabin.

Features

Each cylinder has a cylinder head, four valve inlet and exhaust system, reliable work, convenient dis-assembly.
According to different occasions and requirements of the use, can choose electric pump or common rail pump. The built-in type oil cooler, safe and reliable.
Using the rear end of gear system (flywheel end) to reduce noise and improve the reliability. The water outlet pipe and the engine block are integral body, using double type thermostat.
Frame main bearing structure, the whole body rigidity is high, it is advantageous to improve the reliability and service life of the whole machine.
Double circulating cooling system, in which the cooler is arranged on the top of the flywheel housing, the structure is more compact.
Crankshaft belt pulley, water pump and generator by the multi wedge belt drive, the structure is simple.
