Reliable Deutz Marine Engine, 4 Cylinder, 1500-2100rpm, Low Fuel Usage, Inboard diesel for Ship Propulsion

Reliable Deutz Marine Engine, 4 Cylinder, 1500-2100rpm, Low Fuel Usage, Inboard diesel for Ship Propulsion

Category： PRODUCTS
Views：38
Product description：
Order online

General Introduction

Weichai Wp4 300hp Deutz marine inboard diesel engine boat motor

This series of Deutz engine is 4 cylinder marine diesel engine, energy-saving and environmental product, AVL and Bosch through absorbing the world advanced internal-combustion engine techonology and optimizing design as per the vessel power features and configuration requirement.With lower displacement, it has the feature of strong power, high reliability,more economy and low noise, is an ideal power for inland navigation, fishing and business ships etc.It can meet IMO Tier II emission standard with CCS,ZY,BV certificates etc.

Parameters

Type		four stroke, water cooled, in-line, wet cylinder liner
Intake mode		turbocharged
Cylinder NO.		4
Bore× stroke	mm	105×130
Displacement	L	4.5
Rated power/rated speed	kW-r/min	75/2100
Overload power/overload speed	kW-r/min	83/2167
Min. fuel consumption	g/kW.h	205
fuel consumption in rated power working condition	g/kW.h	225
Oil consumption	%	≤0.3
Idle speed	r/min	650±30
Min. working stable speed	r/min	945
Fire order		1-3-4-2
Steady governing rate	%	≤10

See from four sides

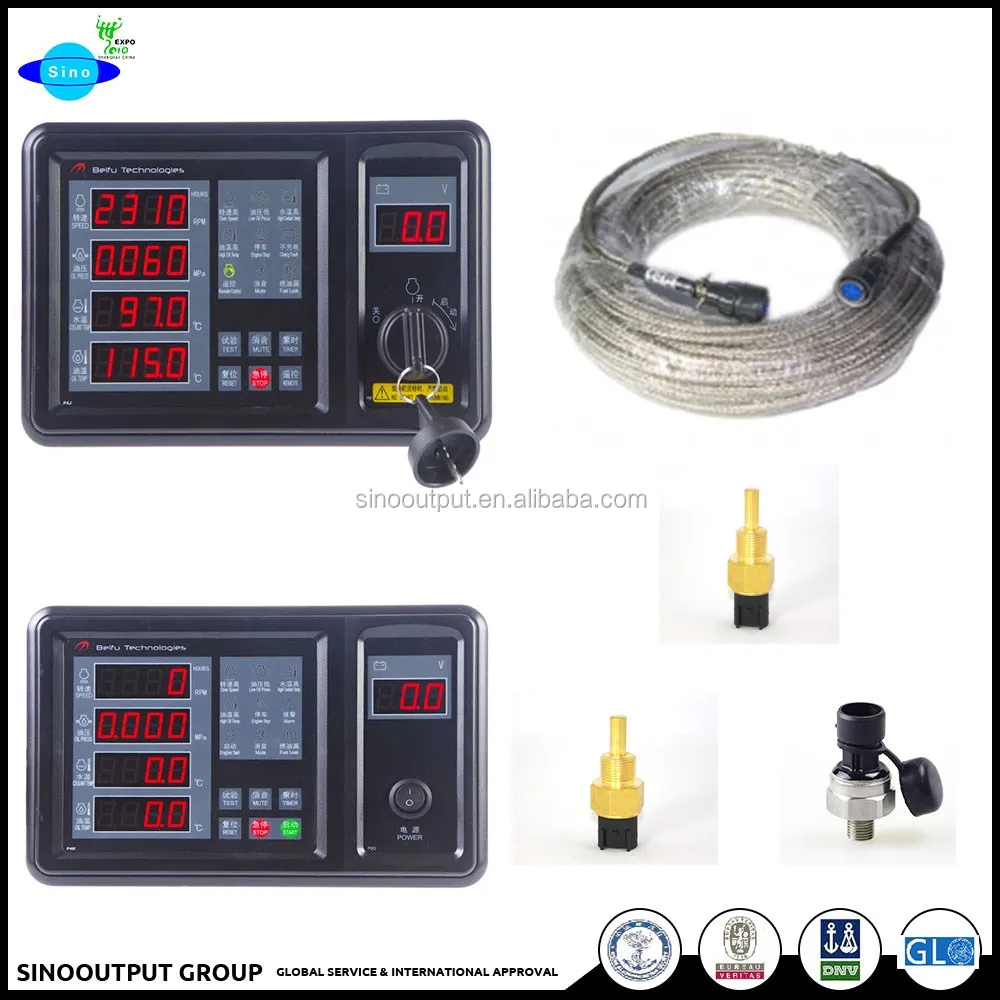

Instrument controller

Sinotruk engine meter/monitor controller, temperature, pressure, speed,alarm panel, includes color

LCD CAN cable meters, can connect all kinds of sensors with 16 ways input, provide alarm

security module, display meter supports digital cable transfer pointer.

No need power supply, just insert it can work

Only insert press sensor, test can work

The temperature sensor, press, speed sensor can do the same.

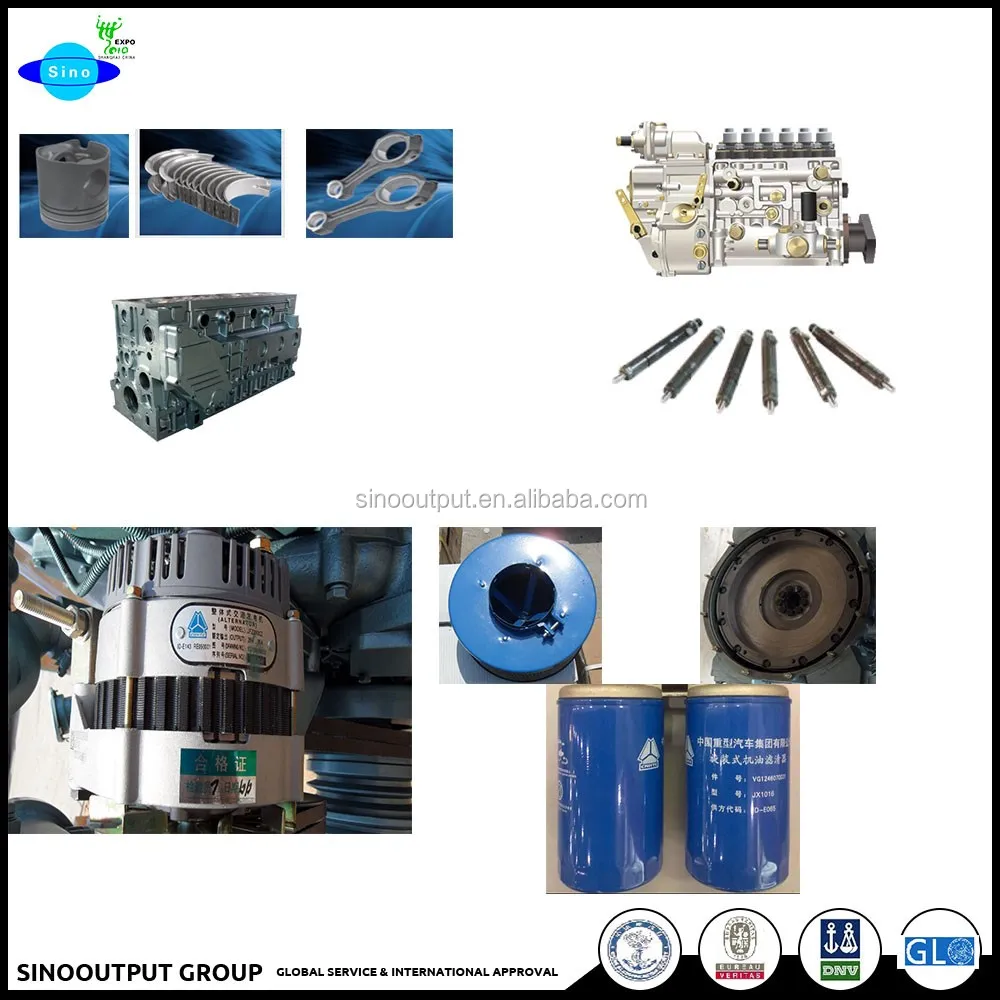

Parts introduction

Cylinder block

All the EuroII engines adopted EuroIII cylinder block

Advantage--the EuroIII cylinder block rigidity is higher, improve engine operation reliability and longer the engine using life.

Fuel injection pump

PS8500 injection pump, only 415 series is PS 7100

Advantage--PS8500 is the first line product in engine field of China market, fuel consumption, torque and displacement better than others.

The injector is by U.K DELPHL tech. better pulverization and sufficient burning.

Connecting rod

By EuroIII standard

Advantage-- Adopts the standard EuroIII of RICHARDO, U.K., strengthening and upgrading the current connecting rod.

Starter

Adopts deceleration type starter

Advantage-- volume and weight reduce 1/3 than others. Big torque ensured when starting at lower temperature and no tooth breaking, adopts advanced tech of slow engagement sealing system, IP56 military vehicle structure, extends using life.

Customers feedback

MAN series engines no maintain within 15000 hours, we try to up to 50000hours.

Parts advantage

Short delivery time, usually dispatch can be within15-20 days, the parts price is lower 1/4-1/3 than others.
